Category : B- Small Block Dodge Magnum

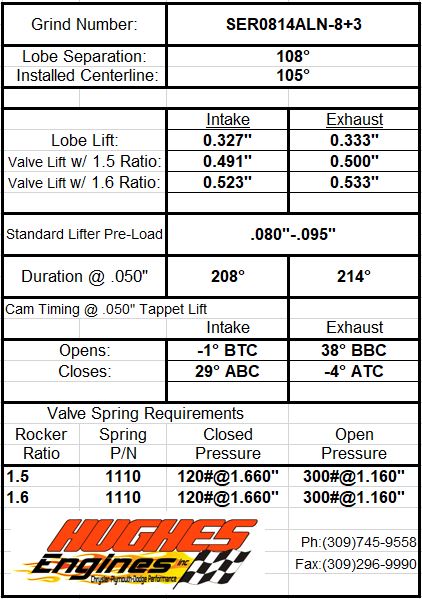

HUG SER0814ALN-08

5.2 ROLLER WHIPLASH CAM 108° + 3°

$446.85

 Roller "Whiplash" Cam

This is a long snout cam. It works fine in the  93-03 Magnum engine but you will need to use our HUG7011 Cam bolt & washer and the HUG7542 cam key (see below in Related Parts).

Hydraulic roller small block camshaft.

Basic guidelines  (These are not absolutes, just guidelines to help you get close on a cam choice)
Use: Mild street, works well with stock heads AND MUST BE USED WITH CARB OR A RE-PROGRAMMED P.C.M!
Idle: Rough - Whiplash
Vacuum: Mid-range
Converter: Stock to mild stall
Rear gear: Stock to 3.55





Related Parts:


Lifters
: Magnum Blocks - High performance use HUG 5007
             LA Blocks use HUG 5321

Spring Upgrade Kit: HUG 1199 - Includes HUG 1110P Valve Springs, HUG 1278 Retainers, and HUG 1307B Locks.

Valve Springs: For 1.5 or 1.6 ratio rockers use HUG 1110P

Valve Locks:    For 5/16" stem use  HUG 1307B
                         For 11/32" stem use HUG 1302
                         For 3/8" stem use HUG 1304

Retainers:  For 5/16" stem use HUG 1278
                  For 11/32" stem use HUG 1202
                  For 3/8" stem use  HUG 1252

Rocker Arm Kits: On Magnum iron heads use HUG 1550 or HUG 1555

On Magnum Edelbrock Heads use HUG 1560 or HUG 1555A
                            On standard LA style heads use 1.5 ratio HUG 15023  For 1.6 ratio use HUG 15063

Cam Key: For LA or Magnum engines use HUG 7542

Cam bolt & washerHUG 7011

Timing Chain & Gear Set: For a 3 keyway use HUG 6440
                                          For a 7 keyway use HUG 6442

Timing Chain Tensioner: CLO 9-5387



Assembly Notes:


We recommend using MRG 1121G Head Gaskets (This gasket will raise the compression ratio of a 5.9 Magnum from 8.2:1 to 8.4:1 over the stock gasket and improves the rocker arm geometry.)
Suggested Intake Manifold: Edelbrock Performer RPM (p/n EDE 7577)
Suggested Carburetor: 625 cfm Demon (p/n DMN 1900)
