Category : E- Big Block (Raised Deck) : Pistons (Stock Stroke) : Flat Top Hypereutectic

KBP KB237.040

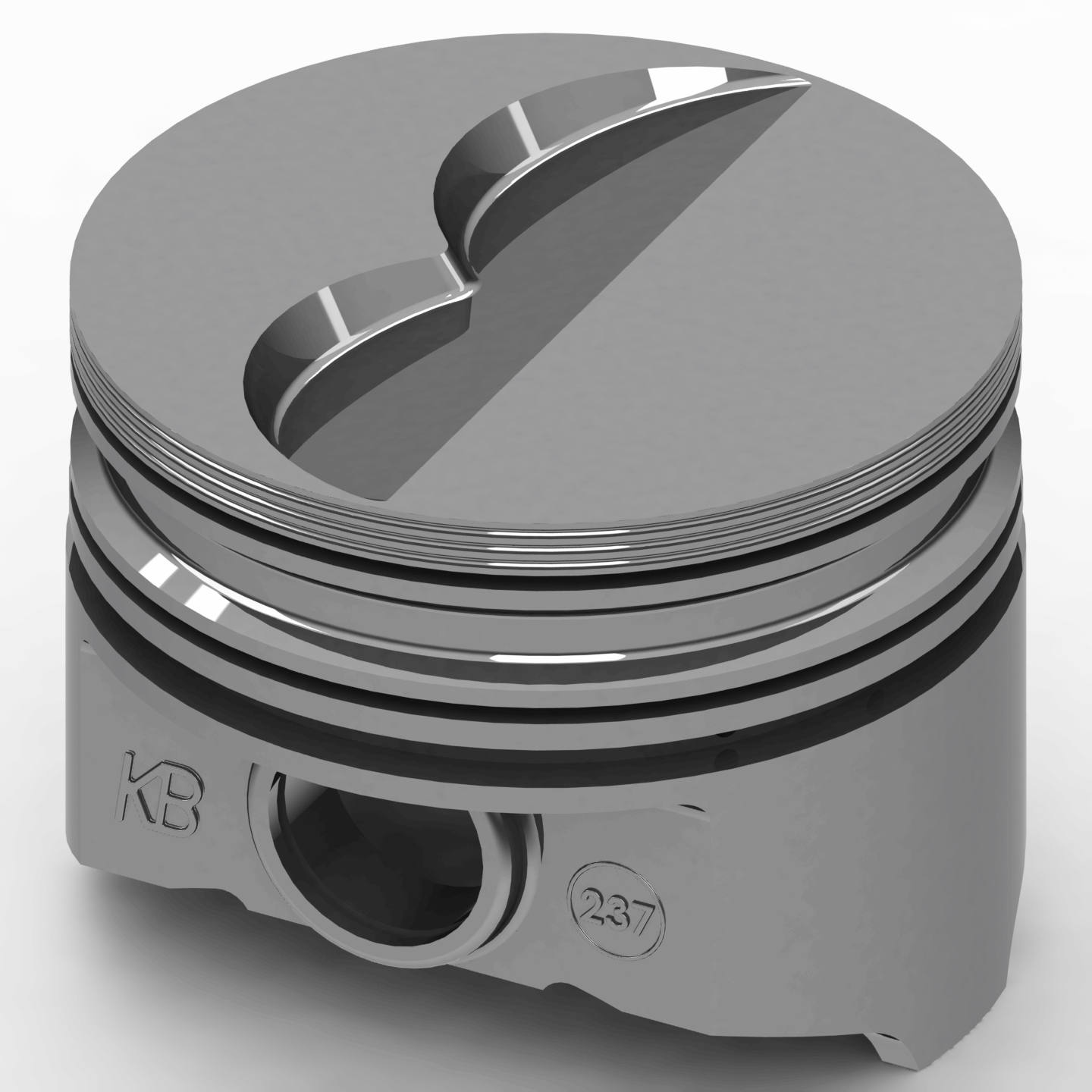

KB HYPEREUT FLAT TOP PISTON SET 4.360"

FLAT TOP WITH 2 VALVE RELIEFS

$439.99

Chrysler 440, V-8

  • 390 Hypereutectic alloy
  • Fully machined crowns and valve reliefs
  • Drilled oil drain backs
  • Full floating wrist pins
  • Triple wound spiral locks
  •
    Compression Ratios
    cc's
    72-11.5
    80-10.6
    85-10.2
    90-9.7


    Ring Packs
    2-5/64
    1-3/16


    Ring Set
    HUG 2160+040


    Pin Number

    1094x300K

    Lock Ring
    PRF116-3








    Flat Top
    Effective Head Volume: -8cc









































    SPECIFICATIONS
    Bore: 4.360   Rod Length: 6.768   Pin Diameter: 1.094
    Stroke: 3.750   Comp. Ht: 2.067   Sizes Available:
    STD
    .020
    .030
    .040
    .060



    Minimum Clearance: Click Here To View
    SPECIAL CLEARANCE REQUIREMENTS
      Crank-to-Deck Clearance: 10.725   Weight
    Piston / Pin:
    770 / 190

    NOTES
    Centered pin
