Category : E- Big Block (Raised Deck) : Gaskets & Valley Plates : Intake & Base

HUG 3274K

1 PC FULL VALLEY PLATE KIT

VALLEY PLATE, 4 .016" BEADED INT GASKETS, 2 END RAILS WITH FASTENERS

$95.50

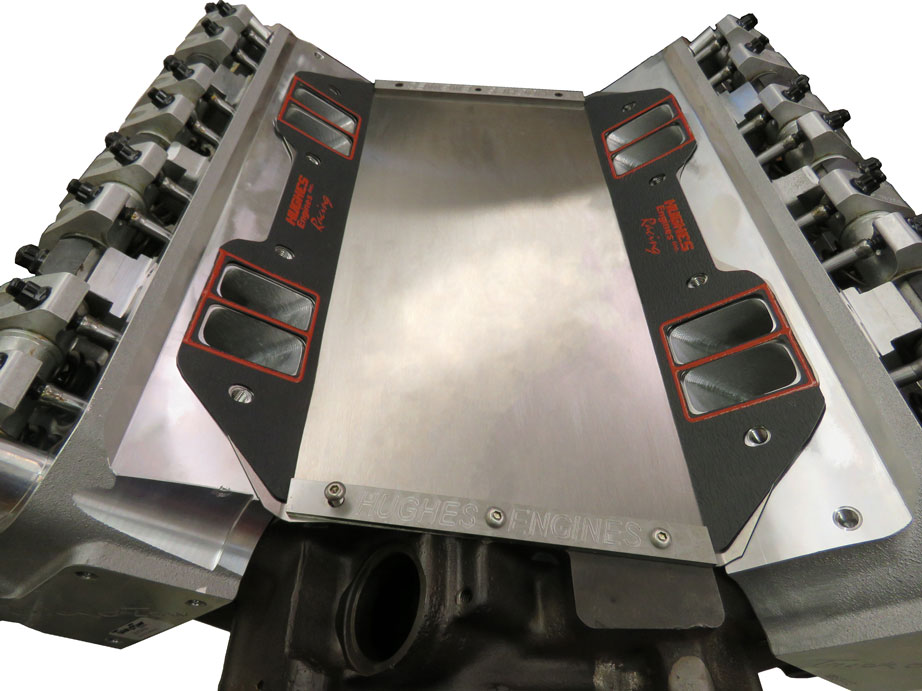

This valley plate is designed to work with standard 440 port size, including ported heads or manifolds and is only 1/4 the weight of aluminum valley covers. They not only look nice, but they fit nice too! Yes, they do work with the original 413/426 max wedge cross-ram intakes. No, they do not work with raised port heads.



These valley covers are designed to work with manfifolds that DO NOT have a heat crossover passage that hangs below the intake port openings. That includes most single plane intakes plus the Indy dual plane. Dual plane intakes with the heat crossover passage must be modified to use our valley cover.

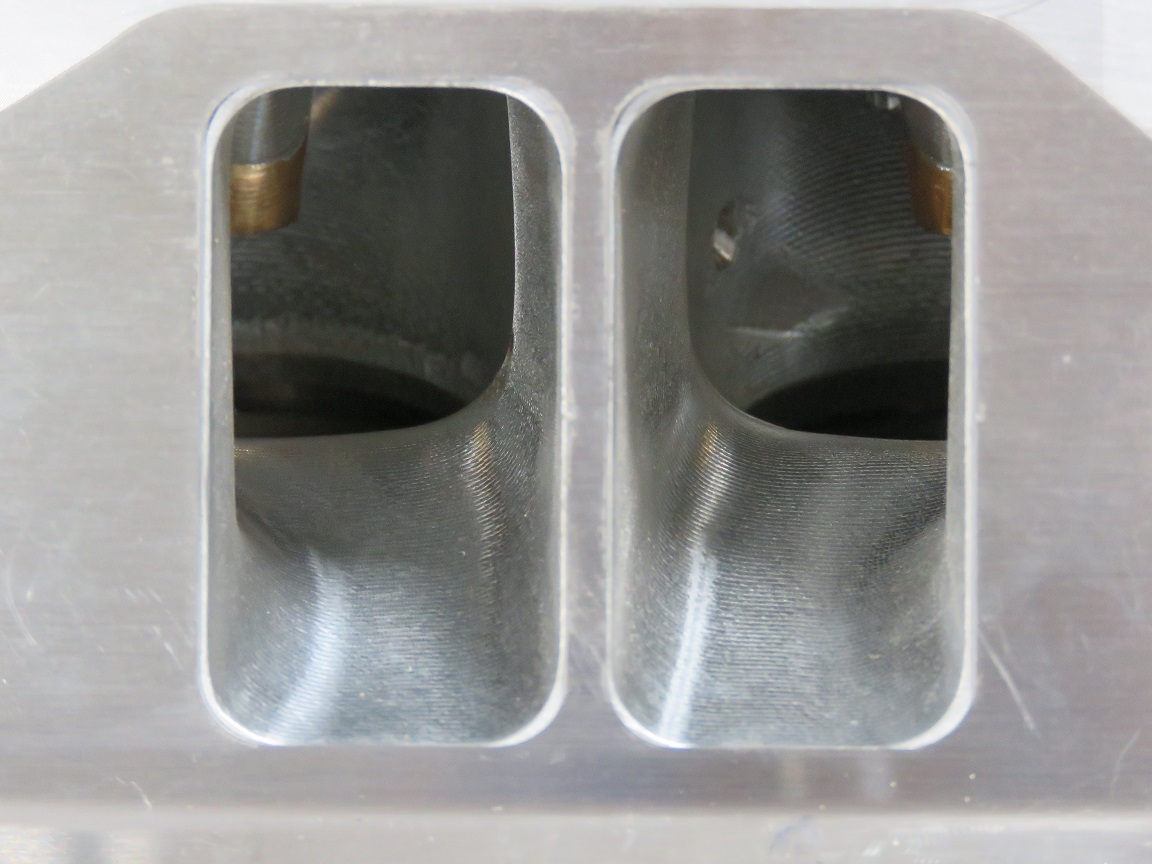

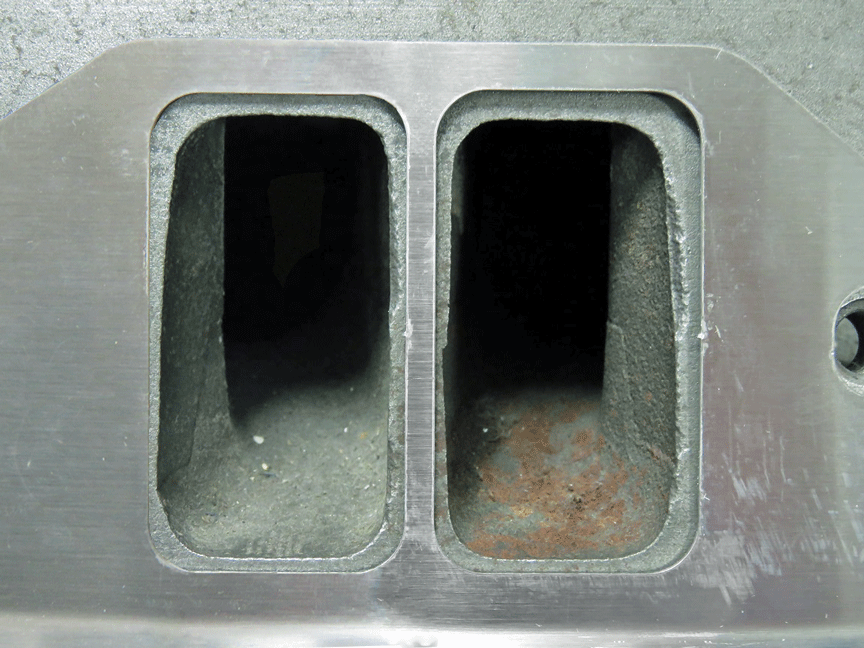

Plenty of room for ported heads!



Hughes Engines Exclusive! Side gaskets only. Can be uses as Standard or Max Wedge port sizes (2.375"/2.650" x 1.280") Hughes Engines special, composition material w/ silicone bead.






FEL 1215
