HUG 4600

ALUMINUM SB EDELBROCK HEAD

CLOSED CHAMBER 65CC HEAD #60779

$1433.00

This part number & price is for a pair of heads.

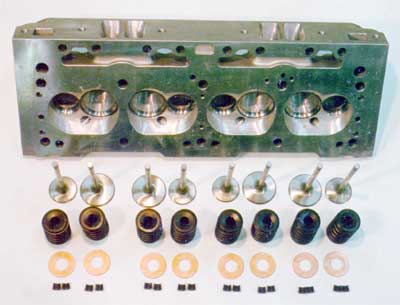

This package includes untouched cylinder heads directly from Edelbrock. The heads are stock "out-of-box" with no additional modifications. The heads are assembled and include Edelbrock valve springs. We always suggest that you consider adding our "Prep" work to the heads to insure a good valve to seat seal and correct any "AS CAST" flaws.
Note: Additional labor to install Hughes Valve Spring Kits, Part Number H1006 $45.00

These heads can support approximately 475 horsepower in a properly prepared engine.

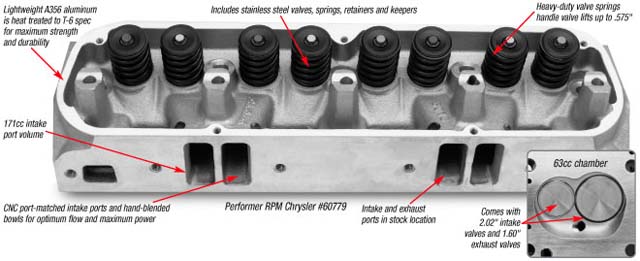

All Edelbrock cylinder heads feature the following:
  • Phosphor-bronze valve guides
  • Interlocking, ductile iron valve seats
  • One piece, stainless steel 2.02" intake valves (11/32" stem)
  • One piece, stainless steel 1.60" exhaust valves (11/32" stem)
  • Heat treated, machined steel retainers
  • Pressure testing after porting to ensure no thin spots exist
  • After porting, valve seats are finish machined with 3 angles
  • Light-weight aluminum castings (approximately 29.5lbs each, assembled)
  • Accepts standard "A" engine intakes and exhaust manifolds/headers
  • Adjustable rocker arms must be used with cams having greater than stock valve lift. We recommend original equipment or aftermarket adjustable rocker arm assemblies, along with matching pushrods.
  • 360 closed chamber heads have approximately 65cc combustion chamber sizes
  • If you need a combination not shown here please call
  • Valve springs, retainers, locks and seals are optional (See the valve spring kit section for more info.)

Related Parts:

7181     Head Bolts, Hex Heads for Edelbrock

7321     Head Stud Kit, Hex Nuts

7440     S.B. Rocker Hold Down Stud Kit

3104     Fel Pro Racing Gasket .039" x 4.180"

For extra strength consider adding our Cryogenic treatment. CLICK HERE
